SS 304 Hollow Pipe and Polished Stainless Steel Square Tubing supplier in China
SS 304 Square Pipe is a particular shape of stainless steel pipes. steelsupplier Overseas is a manufacturer and supplier of all kinds of stainless steel pipes. Stainless steel pipes are in different grades, categories and in shapes. The Square Stainless Steel Pipe is one of the many shapes. There are applications that require high strength and ductility, especially in high pressure fluid flow systems. The Stainless Steel Hollow Pipe can withstand the pressure excerpted on the walls when a bend, curve or change of direction in the piping is applied. It is a strong geometric shape and is preferred in such applications.
The Stainless Steel Box Pipe can be of any grade ranging from 304 basic stainless steel to duplex steels and higher alloys like titanium, chromium, nickel and copper alloy. The Stainless Steel Welded Square Pipes have different weldabilities and corrosion resistance properties according the materials they are made from. The 304 Stainless Steel Square Pipe types are the most used of square pipes because of the high cost efficiency and average strength, corrosion resistance and forming operations. Jindal Stainless Steel Square Pipe Price List is very competitive to the market. We also supply Stainless Steel Hollow Section in different material grades such as the 316 Stainless Steel Hollow Section and in other grades of material. Our 316 Stainless Steel Square Tube and pipe are used in high temperature services with medium to high corrosion risk. We offer products in other material grades and types as well. Please contact us for more information.
Grade 316 Box Section and Stainless Steel Square Tube manufacturer in China, check sizes and weights chart
Stainless Steel Square Pipe Standard and Sizes
SS Square Pipe Dimensions
- OD: 10x20~80x180mm
- Thickness : 0.8~6.0mm
- Length: Single, Double Random & Cut Length
SS Square Tube Specifications
Exporter and supplier of Jindal make ASTM A312 TP316L Stainless Steel Square Pipe, CE ISO EN10204 3.1 SGS, check ready stock and latest price list ex Mumbai
| Standard Specification |
ASTM A554 |
| ASME / ANSI Specification |
ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Stainless Square Tube Available Grades |
304, 316, 304L, 316L, 309S, 308, 310, 310S |
| Manufacturing Type |
CDW, 100% X Ray Welded, ERW, Welded, Seamless, Fabricated |
| Different Delivery Conditions Types |
Annealed and Pickled, Polished, Cold Drawn, Bright Annealed |
| Various Surface Finishing |
2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
| Different Wall Thicknesses |
SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Method used for welding |
TIG or TIG + Plasma |
| Other Value Added Services |
Non Threading, Polishing, Export Documentation, Color Coding, Export Packaging, Machining, NACE MR0175, H2 SERVICE, Material testing, Beveling, Destructive, Customer Tagging/ Marking, Destructive, Threading, MTR’s Available, CRYO SERVICE, Grooving, Cutting, Ultrasonic Testing, OXYGEN SERVICE |
| Stocking distributor of |
Jindal |
Many stainless steel square tubing suppliers, importers, dealers, stockholders, exporters, and distributors buy the material from steelsupplier Overseas and supply in their own countries with higher margins, so contact steelsupplier directly to check our price list to get the best price in China. Ask for a Free quote !!!
Stainless Square Pipe Types
Buy directly from Stainless Steel Square Tube manufacturers in China for factory price and genuine material

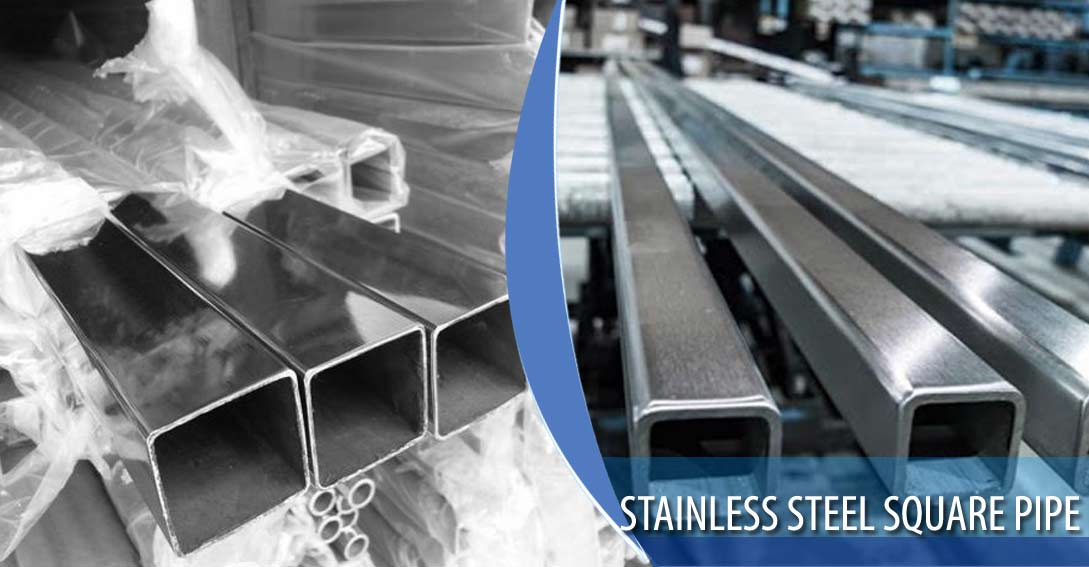

Stainless Steel Square Pipe

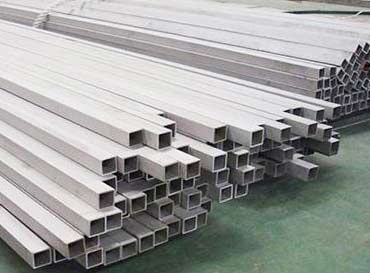

Stainless Steel Square Tubing

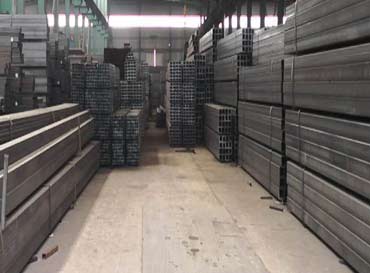

Stainless Steel 304 Square Pipe

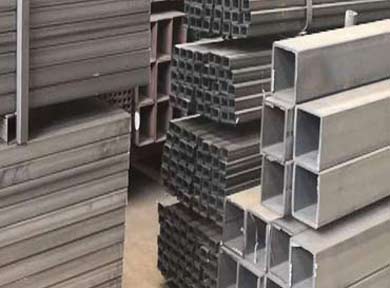

316 Stainless Steel Square Pipe
Stainless Steel Square Pipe Price in China
US $1.50-$2.50 / kg
Only Stainless Steel Square Pipe manufacturer China who stock all size range and wall thickness in 304/ 316 grades, get a Free quote now
Why 300 series stainless steel square pipe known as aerospace pipe?
Aerospace is an industry that has components that operate under high pressure, high temperature and under high wear and tear conditions. There are components in the aerospace that have to be stronger than construction material. Sudden changes of momentum in aerospace applications such as airplane wing panels, platforms, pipes and hydraulics require parts be built from high wear and tear, high strength and high corrosion resistant materials.
The 300 series of Stainless Box Section is a category with 18-30 of chromium in the composition. These are called Austenitic Stainless Steel Square Tube. The variation in chromium, nickel and other components along with the production process and heat treatment can bring them high mechanical properties. The square shaped pipe in particular adds to the structural strength. It does not bend or alter shape as easy as the round pipes.
When square pipes are used, the joints, bends and twists are stronger than that of the round pipes. Some of the variations of the 300 series can work above 1500 degrees Celsius with minimum tensile strength above 500MPa. These properties make the 300 series SS Square Tube be used in and known as the aerospace pipes.
Stainless Steel Square Tubing sizes chart
| Size in Inches |
Size in Feet |
| 1/2 X 1/2 X 16 GA (.065 wall) |
2 /4 /6 /8 /12/ 24 |
| 5/8 x 5/8 x 16GA (.065 wall) |
2 /4 /6 /8 /10/ 20 |
| 3/4 X 3/4 X 16 GA (.065 wall) |
2 /4 /6 /8 /12/ 24 |
| 3/4 X 3/4 X 14 GA (.083 wall) |
2 /4 /6 /8 /12/ 24 |
| 3/4 X 3/4 X 11 GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 1 X 1 X 16GA (.065 wall) |
2 /4 /6 /8 /12/ 24 |
| 1 X 1 X 14 GA (.083 wall) |
2 /4 /6 /8 /12/ 24 |
| 1 X 1 X 11 GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 1-1/4 X 1-1/4 X16GA (.065 wall) |
2 /4 /6 /8 /12/ 24 |
| 1-1/4 x 1-1/4 x 14 GA (.083 wall) |
2 /4 /6 /8 /12/ 24 |
| 1-1/4 X 1-1/4 X 11 GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 1-1/4 X 1-1/4 X 3/16 wall |
2 /4 /6 /8 /12/ 24 |
| 1-1/2 X 1-1/2 X 16GA (.065 wall) |
2 /4 /6 /8 /12/ 24 |
| 1-1/2 X 1-1/2 X 14 GA (.083 wall) |
2 /4 /6 /8 /12/ 24 |
| 1-1/2 X 1-1/2 X 11 GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 1-1/2 X 1-1/2 X 3/16 wall |
2 /4 /6 /8 /12/ 24 |
| 1-1/2 X 1-1/2 X 1/4 wall |
2 /4 /6 /8 /12/ 24 |
| 1-3/4 X 1-3/4 X 14 GA (.083 wall) |
2 /4 /6 /8 /12/ 24 |
| 1-3/4 X 1-3/4 X 11 GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 2 X 2 X 16GA (.065 wall) |
2 /4 /6 /8 /12/ 24 |
| 2 X 2 X 14 GA (.083 wall) |
2 /4 /6 /8 /12/ 24 |
| 2 X 2 X 11 GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 2 X 2 X 3/16 wall |
2 /4 /6 /8 /12/ 24 |
| 2 X 2 X 1/4 wall |
2 /4 /6 /8 /12/ 24 |
| 2-1/2 X 2-1/2 X 11 GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 2-1/2 X 2-1/2 X 3/16 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 2-1/2 X 2-1/2 X 1/4 wall |
2 /4 /6 /8 /12/ 24 |
| 3 X 3 X 11GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 3 X 3 X 3/16 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 3 X 3 X 1/4 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 3 X 3 X 3/8 wall |
2 /4 /6 /8 /12/ 24 |
| 3-1/2 X 3-1/2 X 11GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 3-1/2 X 3-1/2 X 3/16 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 3-1/2 X 3-1/2 X 1/4 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 3-1/2 X 3-1/2 X 3/8 wall |
2 /4 /6 /8 /12/ 24 |
| 4 X 4 X 11GA (.120 wall) |
2 /4 /6 /8 /12/ 24 |
| 4 X 4 X 3/16 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 4 X 4 X 1/4 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 4 X 4 X 3/8 wall |
2 /4 /6 /8 /12/ 24 |
| 4 X 4 X 1/2 wall |
2 /4 /6 /8 /12/ 24 |
| 4-1/2 X 4-1/2 X 3/16 wall |
2 /4 /6 /8 /12/ 24 |
| 4-1/2 X 4-1/2 X 1/4 wall |
2 /4 /6 /8 /12/ 24 |
| 5 X 5 X 3/16 wall |
2 /4 /6 /8 /12/ 24 |
| 5 X 5 X 1/4 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 5 X 5 X 3/8 wall |
10 / 20 |
| 6 X 6 X 3/16 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 6 X 6 X 1/4 wall |
1 / 2 /4 /6 /8 /12/ 24 |
| 6 X 6 X 3/8 wall |
2 /4 /6 /8 /10/ 20 |
| 7 x 7 x 1/4 wall |
2 /4 /6 /8 /12/ 24 |
| 8 x 8 x 1/4 wall |
2 /4 /6 /8 /12/ 24 |
| 8 x 8 x 3/8 wall |
1/ 2 /4 /6 /8 /10/ 20 |
| 10 x 10 x 1/4 wall |
1/2 /4 /6 /8 /10/ 20 |
| 12 x 12 x 1/4 wall |
1 / 2 /4 /6 /8 /10/ 20 |
304 stainless steel square tube metric sizes
| 20MM X 1MM WALL 60" LONG |
| 20MM X 2MM WALL 60" LONG |
| 25MM X 2MM WALL 60" LONG |
| 30MM X 2MM WALL 60" LONG |
| 30MM X 3MM WALL 60" LONG |
| 35MM X 2MM WALL 60" LONG |
| 40MM X 3MM WALL 60" LONG |
| 40MM X 4MM WALL 60" LONG |
| 50MM X 3MM WALL 60" LONG |
| 50MM X 4MM WALL 60" LONG |
| 60MM X 4MM WALL 60" LONG |
| 60MM X 5MM WALL 60" LONG |
Standard stainless steel square tube dimensions and weight chart
| OD IN INCHES |
WALL THICKNESS
GAUGE |
WALL THICKNESS
DECIMAL |
WEIGHT PER FOOT
IN LBS. |
| 1 |
18 |
.0490 |
.630 |
| 1 |
16 |
.0650 |
.827 |
| 1 |
11 |
.1200 |
1.436 |
| 1 1/4 |
16 |
.0650 |
1.050 |
| 1 1/4 |
14 |
.0830 |
1.317 |
| 1 1/4 |
11 |
.1200 |
1.844 |
| 1 1/2 |
16 |
.0650 |
1.270 |
| 1 1/2 |
14 |
.0830 |
1.610 |
| 1 1/2 |
11 |
.1200 |
2.255 |
| 1 1/2 |
7 |
.1800 |
3.630 |
| 1 3/4 |
14 |
.0830 |
1.880 |
| 2 |
16 |
.0650 |
1.710 |
| 2 |
14 |
.0830 |
2.164 |
| 2 |
11 |
.1200 |
3.068 |
| 2 |
7 |
.1800 |
4.455 |
| 2 |
3/16 |
.1880 |
4.460 |
| 2 |
1/4 |
.2500 |
6.010 |
| 2 1/2 |
7 |
.1800 |
5.680 |
| 3 |
14 |
.0830 |
3.293 |
| 3 |
11 |
.1200 |
4.700 |
| 3 |
7 |
.1800 |
6.903 |
| 3 |
3/16 |
.1880 |
6.900 |
| 3 |
1/4 |
.2500 |
10.000 |
| 4 |
11 |
.1200 |
6.260 |
| 4 |
7 |
.1800 |
9.270 |
| 4 |
3/16 |
.1880 |
9.270 |
| 4 |
1/4 |
.2500 |
12.680 |
| 6 |
1/4 |
.2500 |
18.770 |
| 8 |
3/8 |
.3750 |
38.890 |
Can also be supplied with polished finish.
