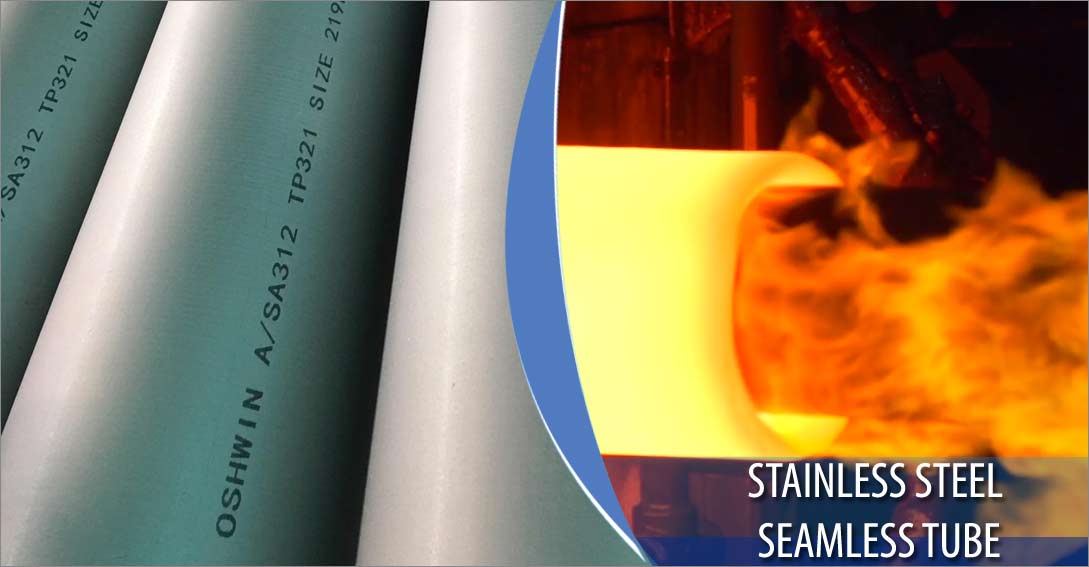

Stainless Steel Seamless Tube manufacturer in China

ASME SA 213 Large Diameter Stainless Steel Tube supplier in China

Searching for Stainless Steel Seamless Tubing suppliers in China to buy specific size? Find your size in our Mumbai and Ahmedabad stockyard

Martensitic and Austenitic Stainless Steel Tubing is a widely used component of piping in different industries. There are various kinds of stainless steels such as austenitic, duplex and commercially pure metal pipes. steelsupplier Overseas is a manufacturer of Stainless Steel tube in different types, shapes and methods. Our Stainless Steel Seamless Tubes are used in applications that require easy installation and for higher dimensional accuracy. In application where heavy welding is involved, our Heavy Wall Stainless Steel Tubing could be used.

There are different material grades from which the Seamless Stainless Steel Tubing is made. Also, the different manufacturing procedures involved can produce different strengths and capacities of these tubes. The Stainless Steel Welded Tubes can be formed from ½ inches to 24 inches and the SS ERW tubes can come in the same diameter range as well. The electric fusion welded tubes can range from 6 inches to 100 inches. There are also different shapes of the tubes for different applications. The Large Diameter Stainless Steel Tube are used in applications with high pressure systems where the stress at turns is high. It is most common to use the SS Seamless Round Tubes in many applications. We also produce Stainless Steel Thin Wall Tubes for applications with narrow space and high accuracy for less pressure applications. These are also used in measurement equipment in smaller applications. The SS Seamless and the Welded Tubes produced by us are of high quality and are tested carefully. You can get a full product list and don't forget to compare our price list with other SS seamless tube manufacturers China.

Table of contents

Stainless Steel Tubes sizes

Stainless Steel Seamless Tubing

  • Size: 1/2" OD - 12" OD
  • OD: 3.00 - 219.10 mm
  • Thickness : 0.40 - 12.70 mm
  • Length: Single, Double Random & Cut Length

Stainless Steel Hypodermic tube

  • OD: 0.4 to 5mm O/D
  • Thickness : 0.05 to 0.4mm

SS Straight & Coiled Instrumentation tube

  • OD: 6, 8 , 10 and 12mm
  • Thickness : 0.5, 1, 1.5 or 2mm
  • SS Continuous Coils Length: up to 1,000 metres long

Metric Tubes

  • OD: 6 to 610mm
  • Thickness : 1 to 6mm

Imperial Tubes

  • OD: 1/8˝ to 6˝
  • Thickness : 24swg to 10swg

SS Hygienic / Sanitary Tubes

  • OD: 1 /2˝, 1˝, 11 /2˝, 2˝, 21 /2˝, 3˝ & 4˝
  • Wall Thickness : 4˝ O/D with 16swg, 14swg

Austenitic Stainless Steel Tubing Specification

Specialized manufacturer and exporter of Heavy Wall Stainless Steel Tubing in China suitable for hydraulic and pneumatic applications

Standard

SUS, JIS, AISI, ASTM, GB, DIN, EN

  • EN 10296-2
  • SEW470
  • EN 10217-7
  • EN 10357
  • ASTM + ASME
  • EN 1127
Manufacturing Type Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded
Delivery Condition Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF
Surface Finish BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish Tubes or Custom Finish as per customer's specification
Thickness Range SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS
Relevant Standard ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296
Value Added Services
  • Cutting
  • Beveling
  • Threading
  • Polishing (Electro & Commercial)
  • Draw & Expansion as per required Size & Length
  • Destructive and Non Destructive
  • Ultrasonic Testing
  • Annealed & Pickled Bending
Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
END Plain End, Beveled End, Treaded Tubes
Processing Service Bending, Welding, Decoiling, Punching, Cutting, Moulding
Technique Cold drawn, Cold rolled, Hot rolled, Extrusion Tubes
Tolerance
  • Outer Diameter: +/- 0.2mm
  • Thickness: +/- 10% OR as customer request
  • Length: +/- 10mm
Marking on SS Tube
  • Specification
  • Material Grade
  • Nominal Size
  • Schedule or Wall Thickness
  • Method of Manufacturing (Seamless / Welded)
  • Heat Number
  • Supplier or Manufacturer’s Name or Custom Logo - on request
Test Certificate provided by SS Tube manufacturers in China
  • DFARS compliant
  • EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
  • 100% Radiography Test Report
  • Raw Materials Certificate
  • Third Party Inspection Report
  • Fumigation Certificates
  • Heat Treatment Charts
  • HS Code Commercial Invoice
  • Form A for Generalized System of Preferences (GSP)
  • Manufacturer Test Certificate
  • Moisture testing
  • Surface roughness measurement
  • Laboratory Test Certificate from Govt. Approved Lab
Packaging Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers' request
Port Mumbai, China
Uses & Application
  • Common industrial services (Petroleum, chemical, paper, fertilizer, fabric, aviation and nuclear)
  • Fluid, gas and oil industry
  • Heat transmission and pressure service
  • Construction and ornamental
  • Boilers and Heat exchangers
  • Decoration purpose, boiler, auto parts, medical device, food industry, building materials)
Other Relevant SA 213 Tubes Grades
  • SS 309, 446
  • Alloy Steel T5, T9, T11, T12, T22, T91
Most common Grades of Stainless Steel Seamless Tubing
Types of Stainless Steel Tube

Many Stainless Steel Tube suppliers, importers, dealers, stockholders, exporters, and distributors procure the tubing material from steelsupplier Overseas and supply in their own countries with higher margins, so contact steelsupplier directly to check our price list to get the best price in China. Call now for Free quote !!!

Types of SS Tubes

UL, FCC, SGS Certified Metric Seamless Stainless Steel Tubing from 1 mm / .254 mm OD for sale, view SS Seamless Tube Price list, tolerances, pressure rating, dimensions and thickness chart

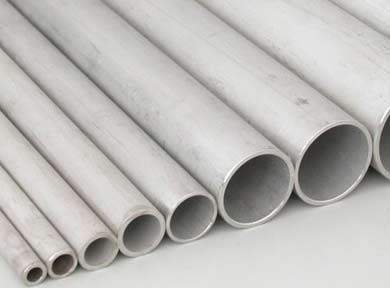

Stainless Steel Tube

Stainless Steel Tube

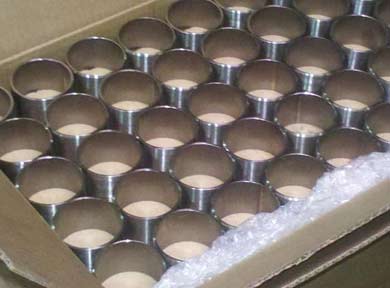

22mm Stainless Steel Tube

22mm Stainless Steel Tube

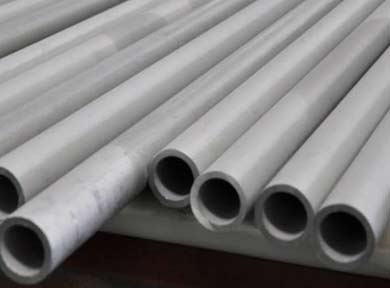

Stainless Steel Seamless Tubes

Stainless Steel Seamless Tubes

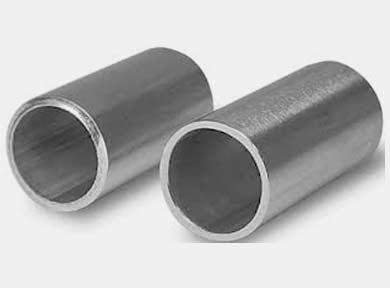

Stainless Steel Heavy Wall Tubing

Stainless Steel Heavy Wall Tubing

SS Tubes for sale

Do not forget to compare our price with other Stainless Steel Tube manufacturers in China, ASTM A213 Beveled and deburred Hypodermic SS Tube suppliers in China from from 3 to 33 gauge.

Stainless Steel CDW Tubes Ferritic Stainless Steel Decorative Tubes
Cold Drawn Stainless Steel Seamless Tubes Austenitic and Ferritic Stainless Steel Fabricated Tubes
12mm A213 Stainless Steel Tubes High Pressure Super Austenitic Stainless Steel Tubes
ASME SA 213 Stainless Steel Small Diameter Tubing Super Martensitic Stainless Steel Sanitary Tubes
High Pressure Ferritic Stainless Steel Seamless Tubing 1 inch Super Ferritic Stainless Steel Tubes
Austenitic Stainless Steel Exhaust Tubing ASTM A312 Stainless Steel Dom Tubing
Sch 40 Martensitic Stainless Steel Seamless Tubing ASME SA312 Stainless Steel Round Tubing
Chromium Stainless Steel Elliptical and Oval Tubes 12mm SS Tubing

Stainless Steel Oval Tube Sizes

Stainless steel flat sided oval tube

Sizes 1.5mm
(Wall thickness)		 2mm
(Wall thickness)		 3mm
(Wall thickness)		 2.77mm
(Wall thickness)
23.5 x 13.3mm ✓ - - -
30.5mm x 17.5mm ✓ - - -
39.5mm x 20.5mm ✓ - - -
43mm x 30mm ✓ - - -
47mm x 25mm ✓ - - -
50mm x 36mm ✓ - - -
61mm x 37mm ✓ ✓ ✓ -
71mm x 45mm - - - ✓
76mm x 50mm - ✓ - -
92mm x 56mm ✓ ✓ ✓ -
121mm x 76mm - ✓ ✓ -
128mm x 70mm - ✓ ✓ -
143mm x 45mm - ✓ - -
200mm x 100mm - - ✓ -

Seamless stainless steel tubing tolerances

Tube Standard Out Diameter- OD (mm) Wall Thickness -WT (%) Cutting Length (mm)
Sizes Tolerance Sizes(mm) Tolerance Sizes Tolerance
GB/T14975-02 10~30 +0.30/-0.30 S≤3 +14/-14 1.0~3.0 +15/0
30~50 +0.40/-0.40 S＞3 +12/-10
D＞50 +0.9%/-0.9%
GB/T14976-02 6~10 +0.20/-0.20 0.5~1.0 +0.15/-0.15mm   +15/0
10~30 +0.30/-0.30 1.0~3.0 +14/-14
30~50 +0.40/-0.40 ＞3 +12/-10
D＞50 +0.9%/-0.9%   +12.5/-12.5
GB13296-91 ≤140 +1.25%/-1.25% ≤10 +15/-15
＞140 +1%/-1% ＞10
ASTM A213 D＜25.4 +0.10/-0.10 D＜38.1 +20/0 D＜50.8 +3.0/0
25.4~38.1 +0.15/-0.15
38.1~50.8 +0.20/-0.20
50.8~63.5 +0.25/-0.25 D≥38.1 +22/0 D≥50.8 +5.0/0
63.5~76.2 +0.30/-0.30
76.2~101.6 +0.38/-0.38
101.6~190.5 +0.38/-0.64
190.5~228.6 +0.38/-1.14
ASTM A269 D＜12.7 +0.13/-0.13   +15/-15   +3.2/0
12.7~38.1 +10/-10
38.1~88.9 +0.25/-0.25 +4.8/0
88.9~139.7 +0.38/-0.38
139.7~203.2 +0.76/-0.76
ASTM A312 10.29~48.26 +0.40/-0.80   +12.5/-12.5   +6.0/0
48.26~114.30 +0.80/-0.80
114.30~219.08 +1.60 /-0.80
219.08~457.20 +2.40/-0.80
ASTM A789 D≤12.7 +0.13/-0.13   +15/-15   +3.0/0
12.7~38.1 +10/-10
38.1~88.9 +0.25/-0.25 +5.0/0
88.9~139.7 +0.38/-0.38
139.7~203.2 +0.76/-0.76
ASTM A790 10.29~48.26 +0.40/-0.80
48.26~114.3 +0.80/-0.80
114.3~219.08 +1.60/-0.80
219.08~457.20 +2.40/-0.80
EN17455-02 10~30 +0.30/-0.30 S≤3 +14/-14 1.0~3.0 +15.0/0
30~50 +4.00/-4.00 S＞3 +12/-10
D＞50 +9%/-9%
EN17456-02 6~10 +0.20/-0.20 0.5~1.0 +0.15/-0.15   +15.0/0
10~30 +0.30/-0.30 1.0~3 +14/-14
30~50 +4.00/-4.00 S＞3 +12/-10
D＞50 +0.9%/-0.9%

ASTM Standard for SS Tubing

Wide size range, check Round, bright annealing Stainless steel tubing Price list in China for heat exchangers and exhaust systems, Find your nearest swagelok and sandvik ss tubing dealers and distributors

ASTM Spec Manufacturer and supplier of
A450/ A450M Austenitic Alloy Steel Tubes supplier
A370 Steel Products Mechanical Test
A213/A213M Ferritic and Austenitic Stainless Steel Seamless Alloy Steel Boiler, Superheater, Condenser and Heat Exchanger Tubing manufacturer in China
A249/A249M Welded Austenitic Steel Boiler, Superheater, Heat Exchanger and Condenser Tubes manufacturer in China
A268/A268M Ferritic and Martensitic Stainless Steel Seamless and Welded Stainless Steel Tubing supplier
A269 Austenitic Stainless Steel Seamless and Welded Tubing supplier for General Service
A270 Seamless and Welded Austenitic Stainless Steel Sanitary Tubing
A511 Stainless Steel Seamless Mechanical Tubing supplier
A554 Stainless Steel Welded Mechanical Tubing supplier
A632 Small diameter Austenitic Stainless Steel Seamless and Welded Tubing manufacturer in China
A778 Austenitic Stainless Steel Welded, Unannealed Tubular Products supplier
A789/A789M Ferritic/ Austenitic (Duplex) Seamless and Welded Stainless Steel Tubing suppliers for General Service
A791/A791M Ferritic Stainless Steel Welded, Unannealed Tubing supplier
A803/A803M Ferritic Stainless Steel Welded Feedwater Heater Tubes manufacturer in China

Stainless Steel Tubing AMS Specifications

SS Grade AMS Specification for Aircraft Stainless Steel Tubing
17-7 PH AMS 5568
17-4 PH AMS 5604, 5643
15-5 PH AMS 5659
304 AMS 5560, 5565, 5566, 5567, 5639
304 ASTM A249, A269
304 MIL-T-6845, 8504, 8506
321 AMS 5557, 5570, 5576, 5645
321 MIL-T-8606, 8808, 8973
347 AMS 5556, 5571, 5575
347 MIL-T-8606, 8808
316 AMS 5573
410 AMS 5591, 5613
21-6-9 AMS 5561, 5562, BMS 7-185
CUSTOMER SPECIFIC SPECIFICATIONS
DMS 1578, CVA-1-404, MMS 261, PWA 770, PWA-S-5557, LAC-08-1173 & OTHERS

Martensitic vs Austenitic Stainless Steel Tubing

Martensitic Stainless Steel Tube Chemical Properties

EN Steel designation European EN AISI C Cr Mo Others
X12Cr13 1.4006 410 0.12 12.5 - -
X20Cr13 1.4021 420 0.20 13.0 - -
X50CrMoV15 1.4116 - 0.50 14.5 0.65 V: 0.15
X14CrMoS17 1.4104 430F 0.14 16.5 0.40 S: 0.25
X39CrMo17-1 1.4122 - 0.40 16.5 1.10 -
X105CrMo17 1.4125 440C 1.10 17.0 0.60 -
X17CrNi16-2 1.4057 431 0.17 16.0 - Ni: 2.00
X4CrNiMo16-5-1 1.4418 - ≤ 0.06 16.0 1.10 Ni: 2.00
X5CrNiCuNb16-4 1.4542 630 (17/4PH) ≤ 0.07 16.0 - Ni: 4.00

Cu: 4.00

Nb: 5xC to 0.45

Austenitic Stainless Steel Tube Chemical Properties

EURONORM (EN) STANDARD EN DESIGNATION AISI GRADE C CR MO NI OTHERS
1.4310 X10CrNi18-8 301 0.10 17.5 NS* 8 NS
1.4301 X5CrNi18-10 304 < 0.07 18.5 NS 9 NS
1.4307 X2CrNi18-9 304L < 0.030 18.5 NS 9 NS
1.4305 X8CrNiS18-9 e 303 < 0.10 18 NS 9 0.3
1.4541 X6CrNiTi18-10 321 < 0.08 18 NS 10.5 Ti: 5×C ≤ 0.70
1.4401 X5CrNiMo17-12-2 316 < 0.07 17.5 2.2 11.5 NS
1.4404 X2CrNiMo17-12-2 316L < 0.030 17.5 2.25 11.5 NS
1.4571 X6CrNiMoTi17-12-2 316Ti < 0.08 17.5 2.25 12 Ti: 5×C ≤ 0.70

*NS = Not specified

No matter where the location, we supply Stainless Steel Seamless Tubing more than 12 countries, call now for shipping time and cost estimate

steelsupplier supplying Stainless Steel Tubes in following countries without any rejection, contact us for reference in following locations.

  • Oman
  • United States
  • UK
  • Indonesia
  • Kuwait
  • Japan
  • South Korea
  • Iran
  • Malaysia
  • Singapore
  • Turkey
  • Germany
  • Colombia
  • Nigeria
  • Iraq
  • Venezuela
  • UAE
  • Canada
  • Taiwan
  • Saudi Arabia
  • Mexico
  • Bangladesh
  • South Africa
  • Thailand
  • Israel
  • Netherlands
  • Brazil
  • Qatar
  • Tanzania
  • Australia
  • Spain

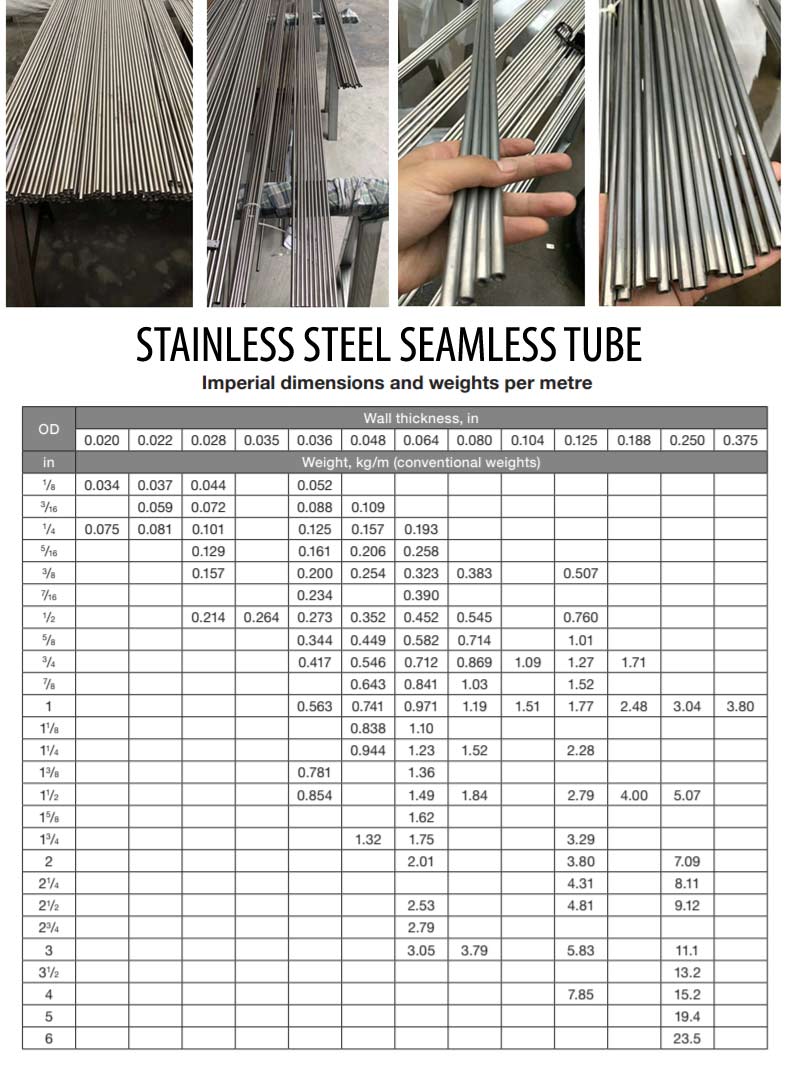

Stainless Steel Tubes weight per metre

Stainless Steel Tube weight per metre
